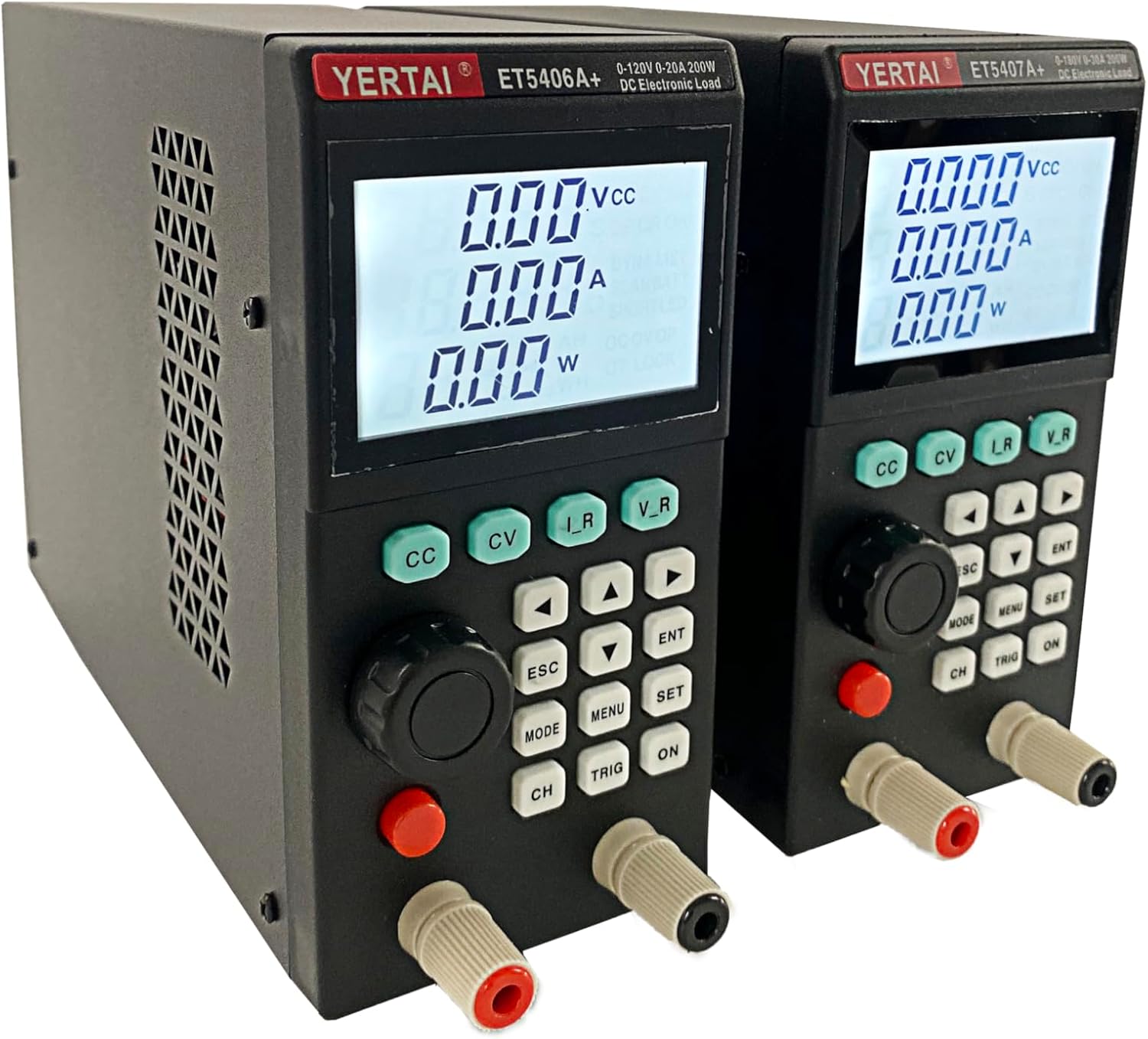

YERTAI 200W Signal Channel Electronic Load Tester 200W,0-120v 0-20A Battery Tester.Switching Power Supply,Linear Power Supply USB Communication,Black Color,ET5406A+

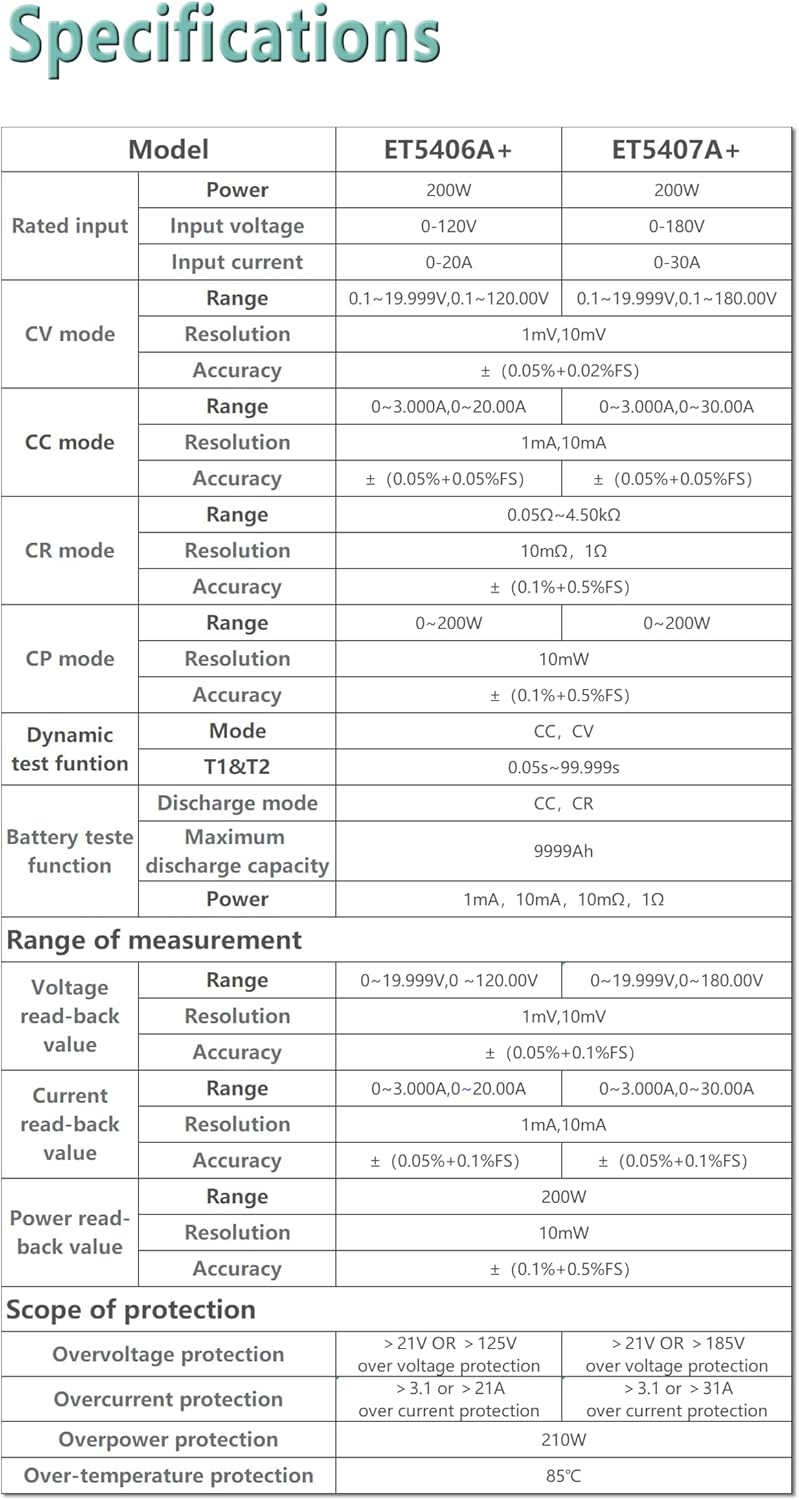

ET5406A+ electronic load tester Rated input Power 200W Input voltage 0-120V Input current 0-20A electronic load tester CV mode Range:0.1~19.999V,0.1~120.00V Resolution:1mV,10mV Accuracy ±（0.05%+0.02%FS） electronic load tester CC mode Range:0~3.000A,0~20.00A Resolution:1mA,10mA Accuracy ±（0.05%+0.05%FS） electronic load tester CR mode Range:0.05Ω~4.50kΩ Resolution:10mΩ，1Ω Accuracy ±±（0.1%+0.5%FS） electronic load tester CP mode Range:0~200W， Resolution:10mW Accuracy ±（0.1%+0.5%FS） Battery Tester discharge mode :CC CR Maximum discharge capacity :9999Ah Resolution 1mA,10mA ,10mΩ，1Ω

• ET5406A+ electronic load tester Rated input Power 200W Input voltage 0-120V Input current 0-20A

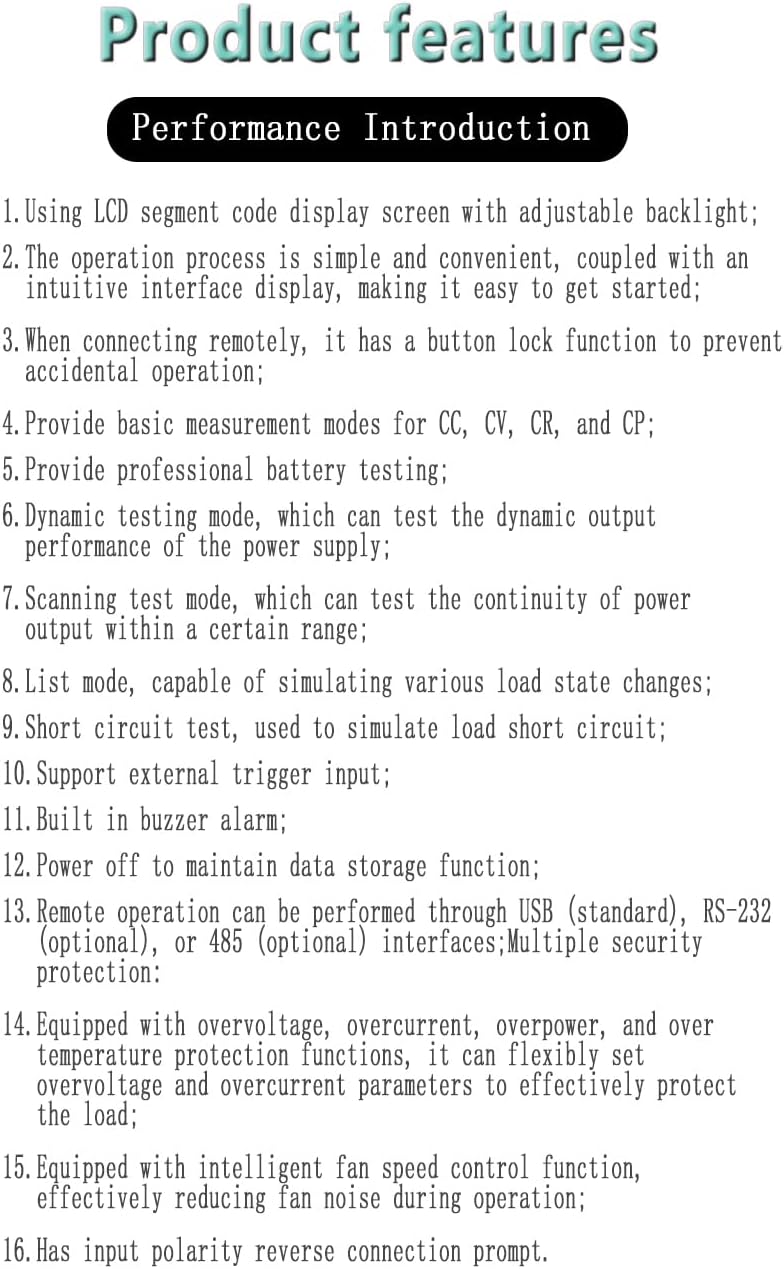

• can be widely used in production line testing in chargers, switching power supplies, linear power supplies, batteries and other industries.
• Provide basic measurement modes of CC, CV, CR and CP
• overvoltage, overcurrent, overpower and overtemperature protection functions, overvoltage and overcurrent parameters can be flexibly set to effectively protect the load;
